Busbars

We offer lighting strips and modules

Distributors
Busbars

Power distributors – splitters

The power distributors in our offer are:

PCB boards with soldered sockets or plugs,
PDB boards with soldered snap-lock connectors,
ready-made splitters in a plastic housing

In short
Benefits
Composition

What are busbars

Busbars are modern solutions used in construction, furniture making, and POS systems. They are highly flexible, enabling the powering of devices with low, medium, and high power consumption. They are commonly found in industrial installations, store shelving, and shopping malls, where not only the quantity and source of energy matter, but also aesthetics. An important feature is their compact casing and durable construction.

Benefits of using busbars:

Reduced amount of wiring
Powering multiple strips/bars from a single line
Only one connection point needed
Smaller footprint of the low-voltage distribution board
Protection devices mounted directly on the conductor
Easy expansion possibilities
Short installation time

What do busbars consist of?

The exterior is made of hot-dip galvanized sheet metal. Inside, there are high-quality copper conductors insulated with plastic material. Special connectors attached to the busbar allow quick connection of several LED strips/modules. Heat shrink tubing protects the start and end points of the busbar.

Programmable 2-Channel Fuse

DO UZUPEŁNIENIA

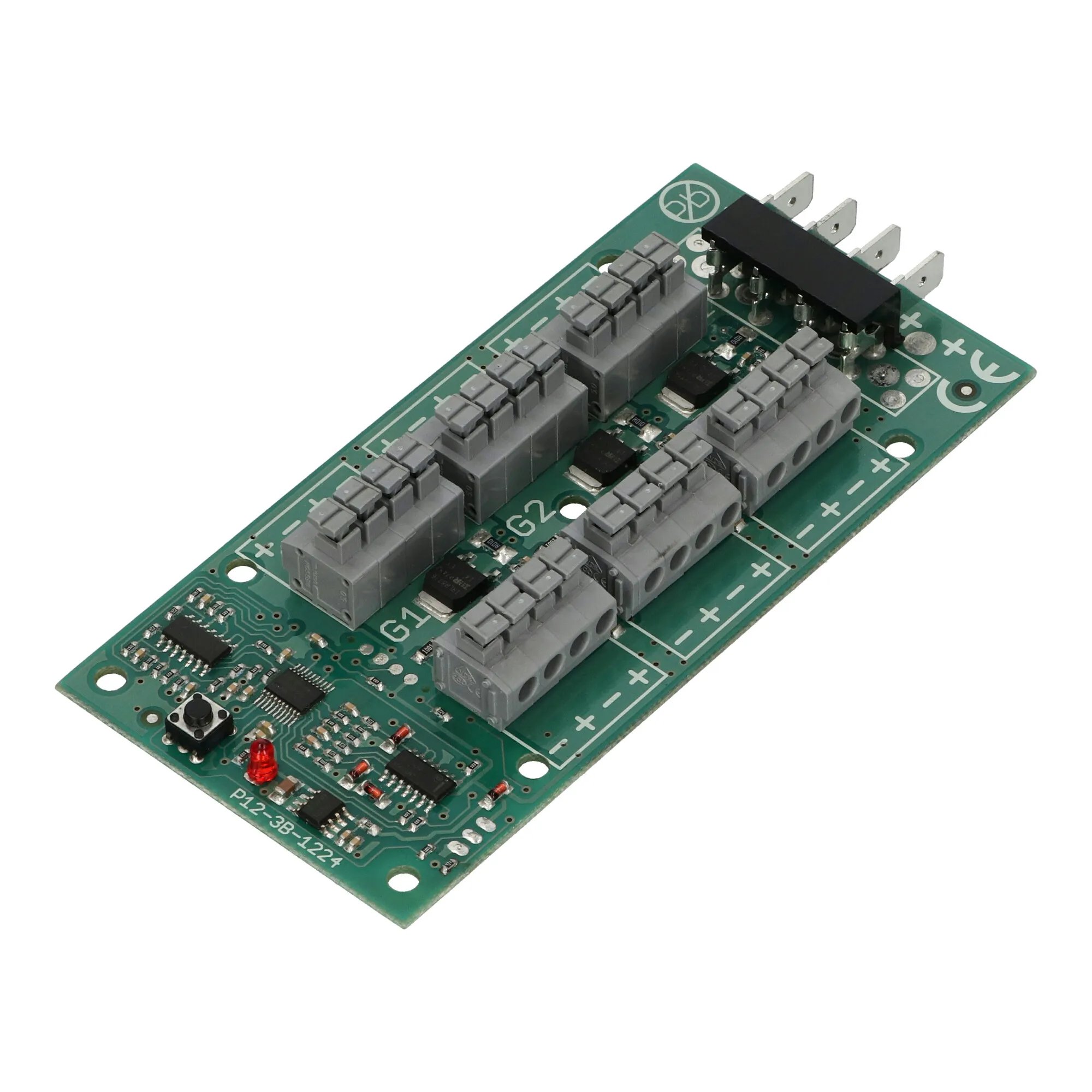

Programmable 3-Channel Fuse

DO UZUPEŁNIENIA

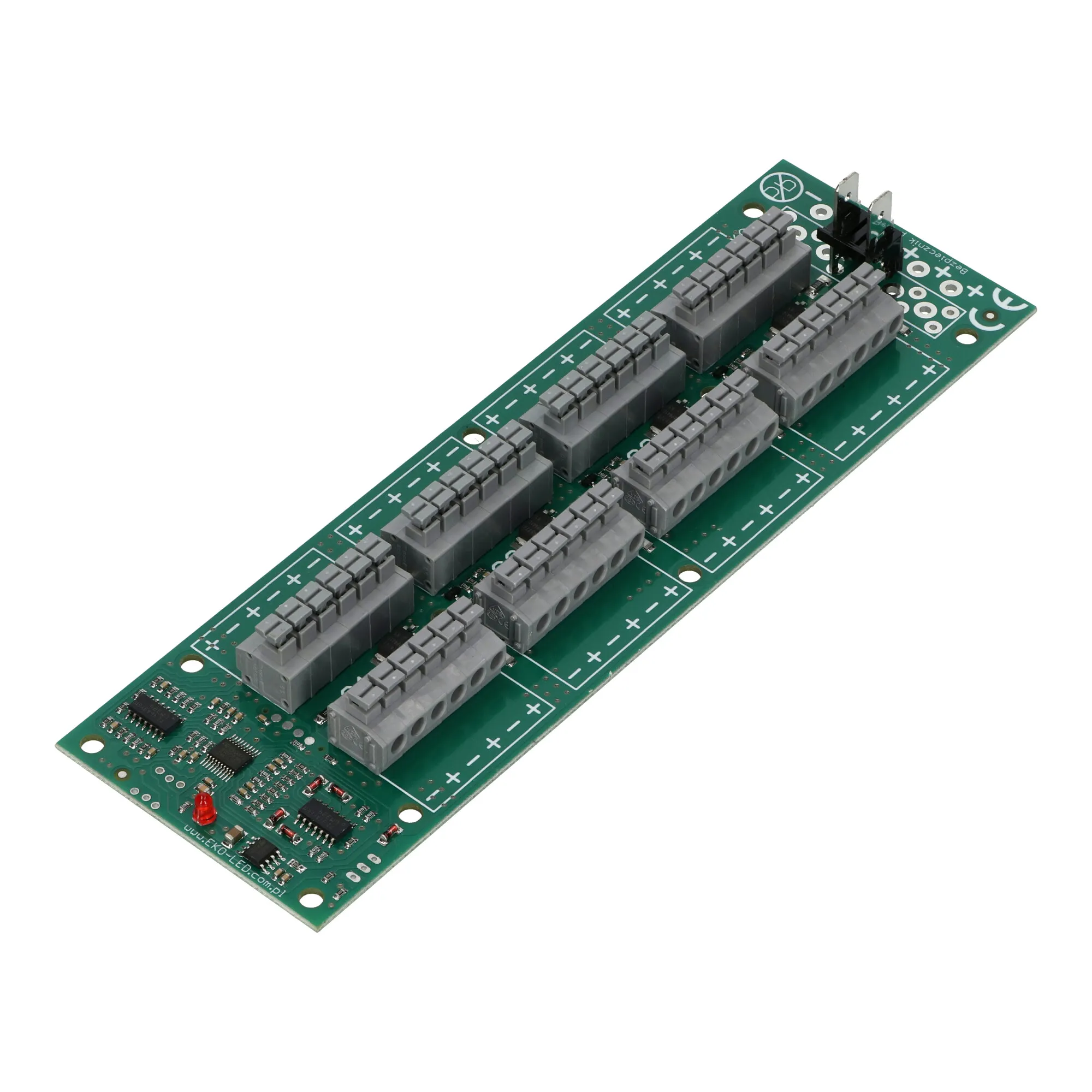

Programmable 4-Channel Fuse

DO UZUPEŁNIENIA

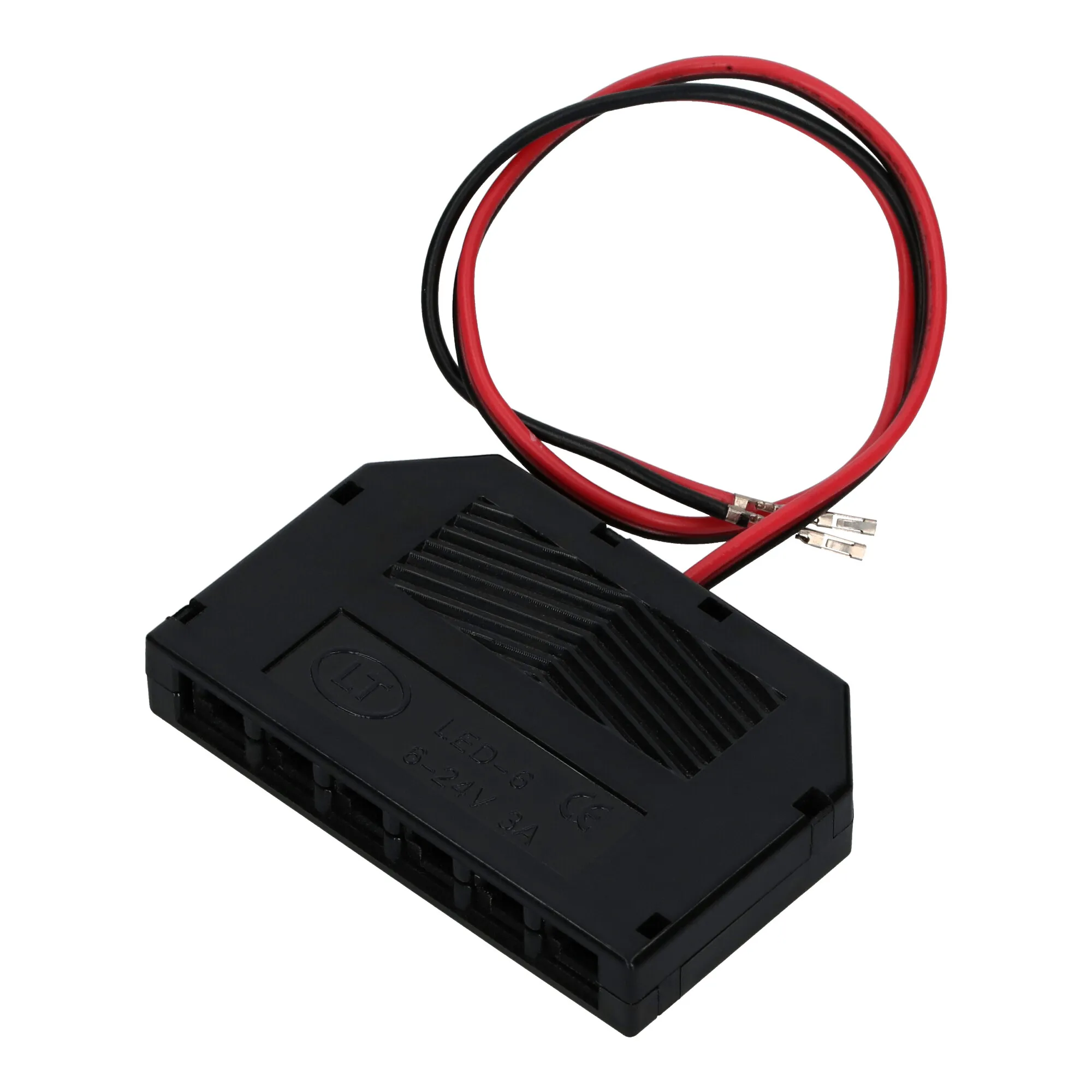

6-Port MiniAMP Distributor

Voltage: 3–24V DC
Max. input current: 3A
Max. output current per channel: 3A
IN (wire): 0.3–0.75mm² (22–18AWG)
OUT (wire): mini AMP plug with wire
3-port: L=38mm W=34.5mm H=10mm
6-port: L=38mm W=58.5mm H=10mm

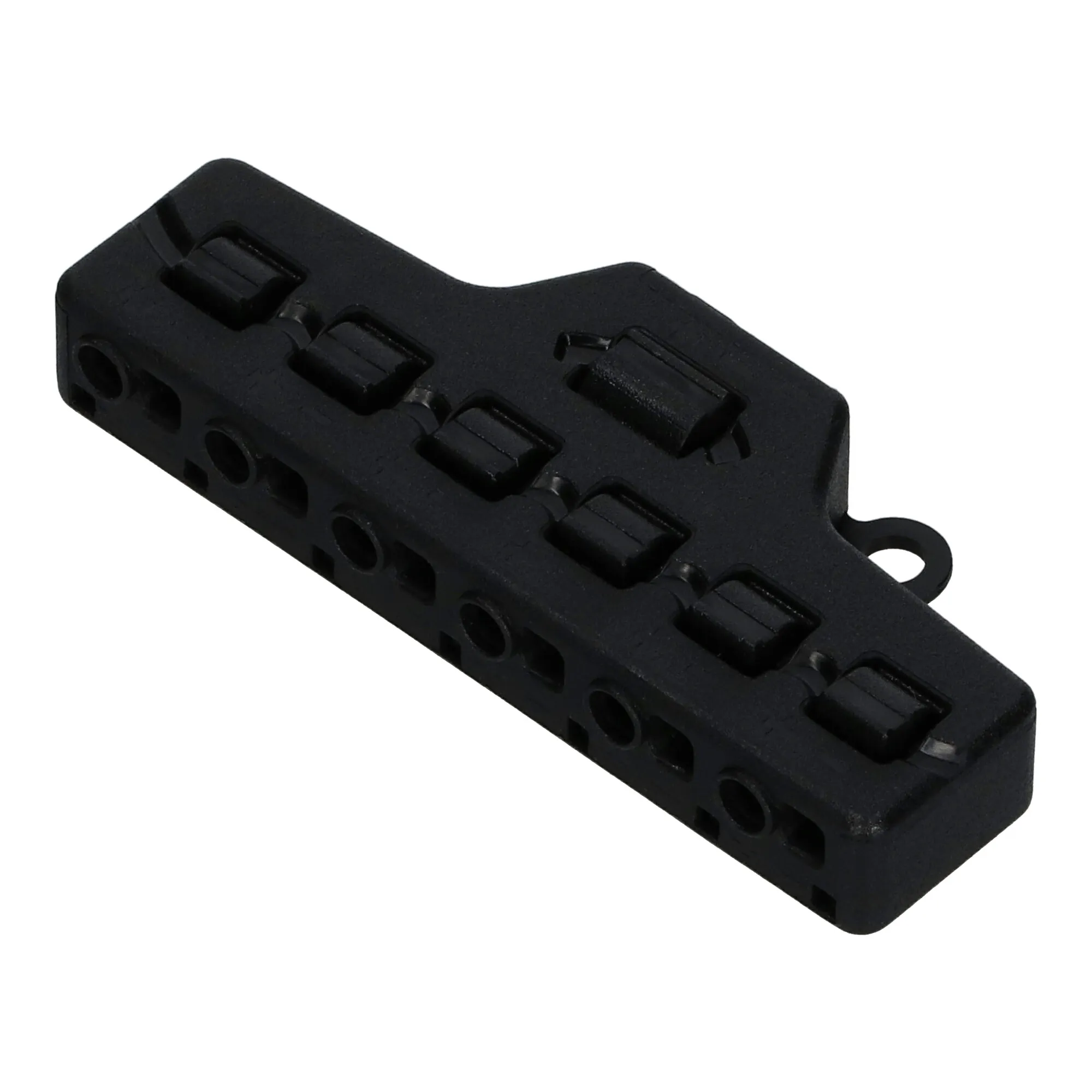

6-Port Distributor

Voltage: 0–42V DC
Max. input current: 9A
Max. output current per channel: 1.5A
IN (wire): 0.3–0.75mm² (22–18AWG)
OUT (wire): 0.3–0.5mm² (22–20AWG)
3-port: L=24mm W=31mm H=9.3mm
6-port: L=24mm W=58mm H=9.3mm

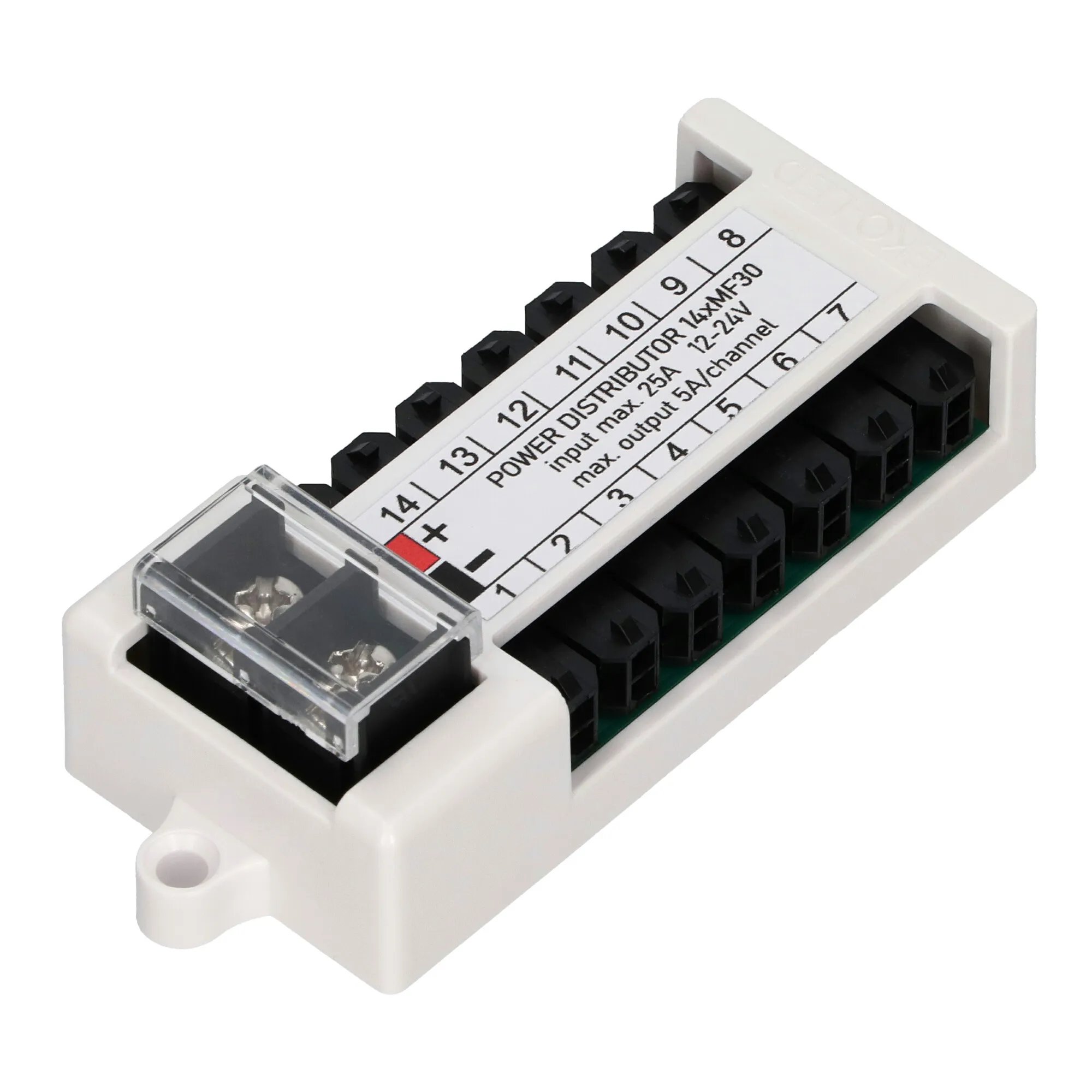

14xMF30 Distributor

Voltage: 48V DC (max.)
Max. current: 20A
Max. current per channel: 5A
IN wire: 0.35–4mm² (22–11AWG)
OUT wire: 0.35–0.5mm² (22–11AWG) MF30 plug
Dimensions: L=93.5mm W=36.2mm H=26mm
Color: white and black

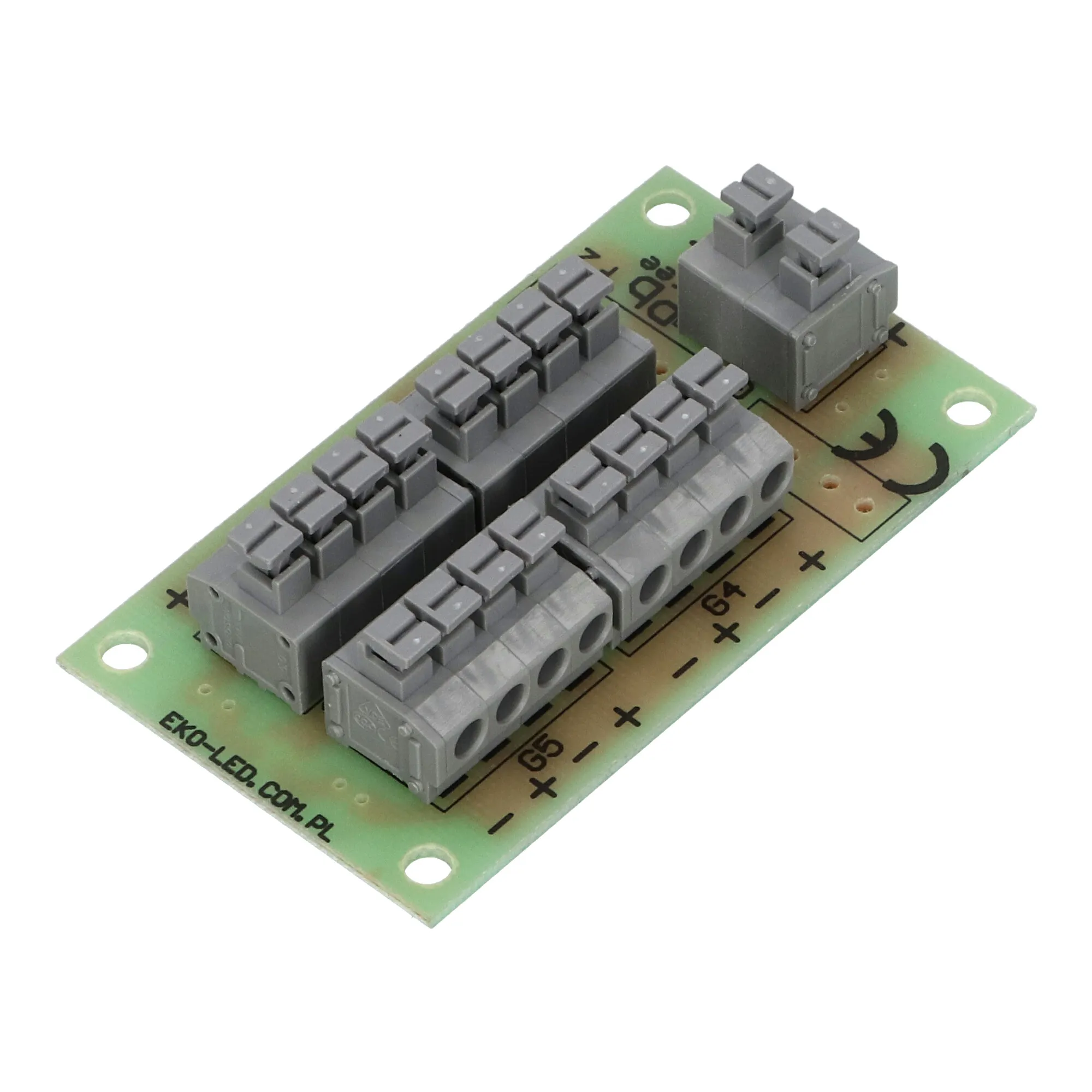

8-Channel Power Distributor

Voltage: 12V DC
Max. input current: 5A
Max. output current per channel: 5A
IN (wire): 0.3–1mm² (22–17AWG)
OUT (wire): 0.3–1mm² (22–17AWG)
L=74mm W=42mm

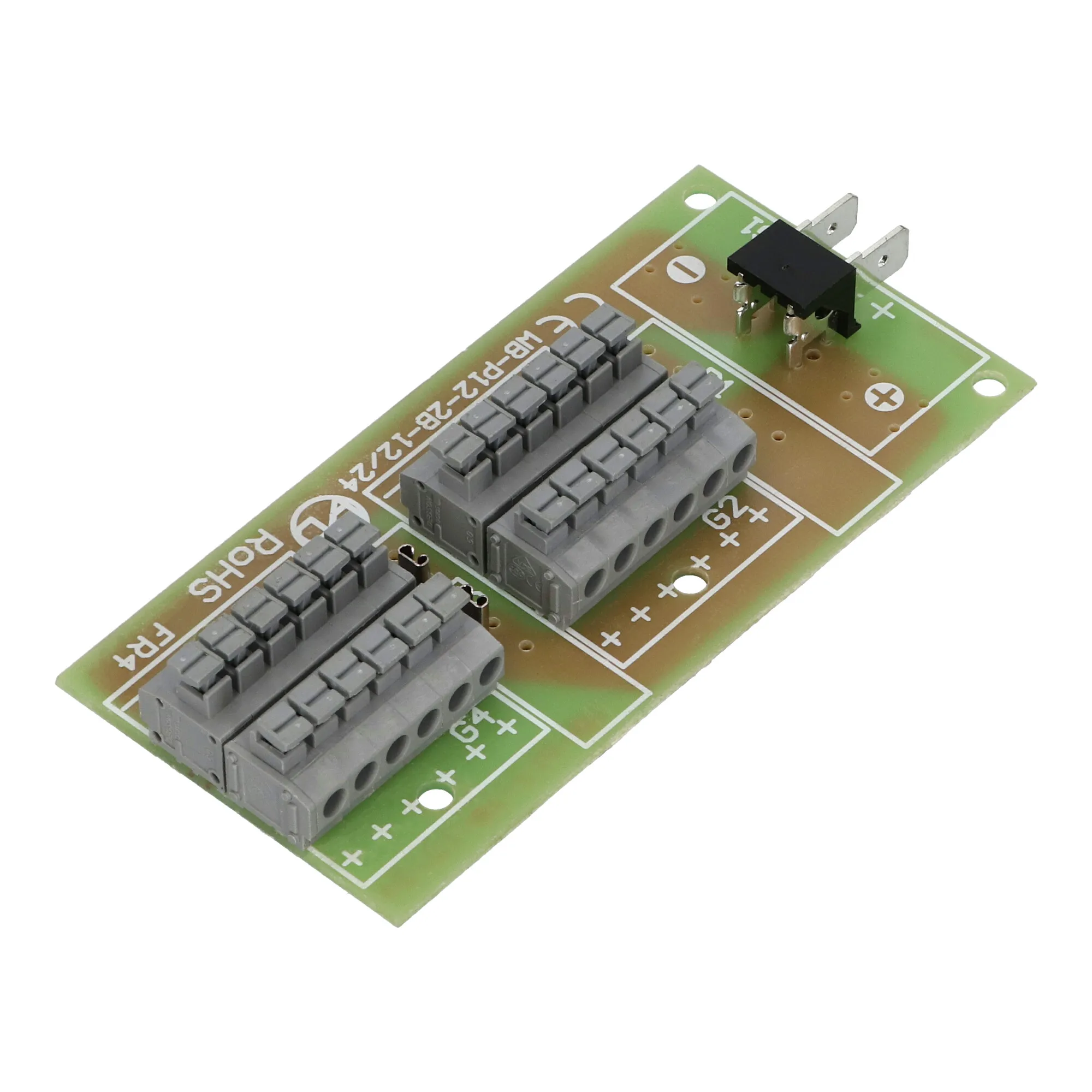

12-Channel Power Distributor 2B

Voltage: 12V/24V DC
Max. input current: 10A
Max. output current per channel: 6A
IN (wire): 0.3–1mm² (22–17AWG)
OUT (wire): 0.3–1mm² (22–17AWG)
L=106.7mm W=51.8mm

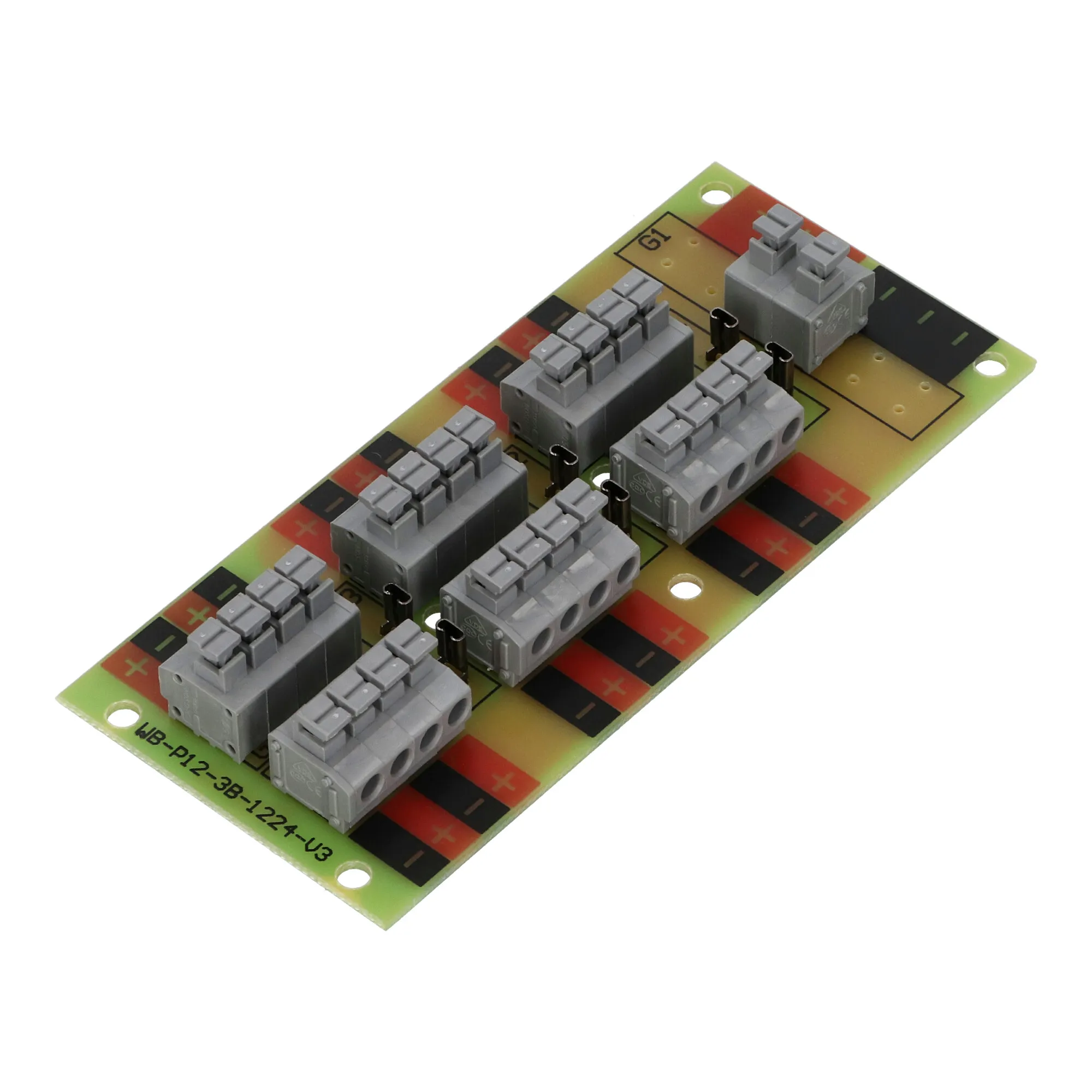

12-Channel Power Distributor 3B

Voltage: 12V–24V DC
Max. input current: 15A
Max. output current per channel: 6A
IN (wire): 0.3–1mm² (22–17AWG)
Width/current on CN1 connector: 6.3mm / 12A
L=117.5mm W=52mm

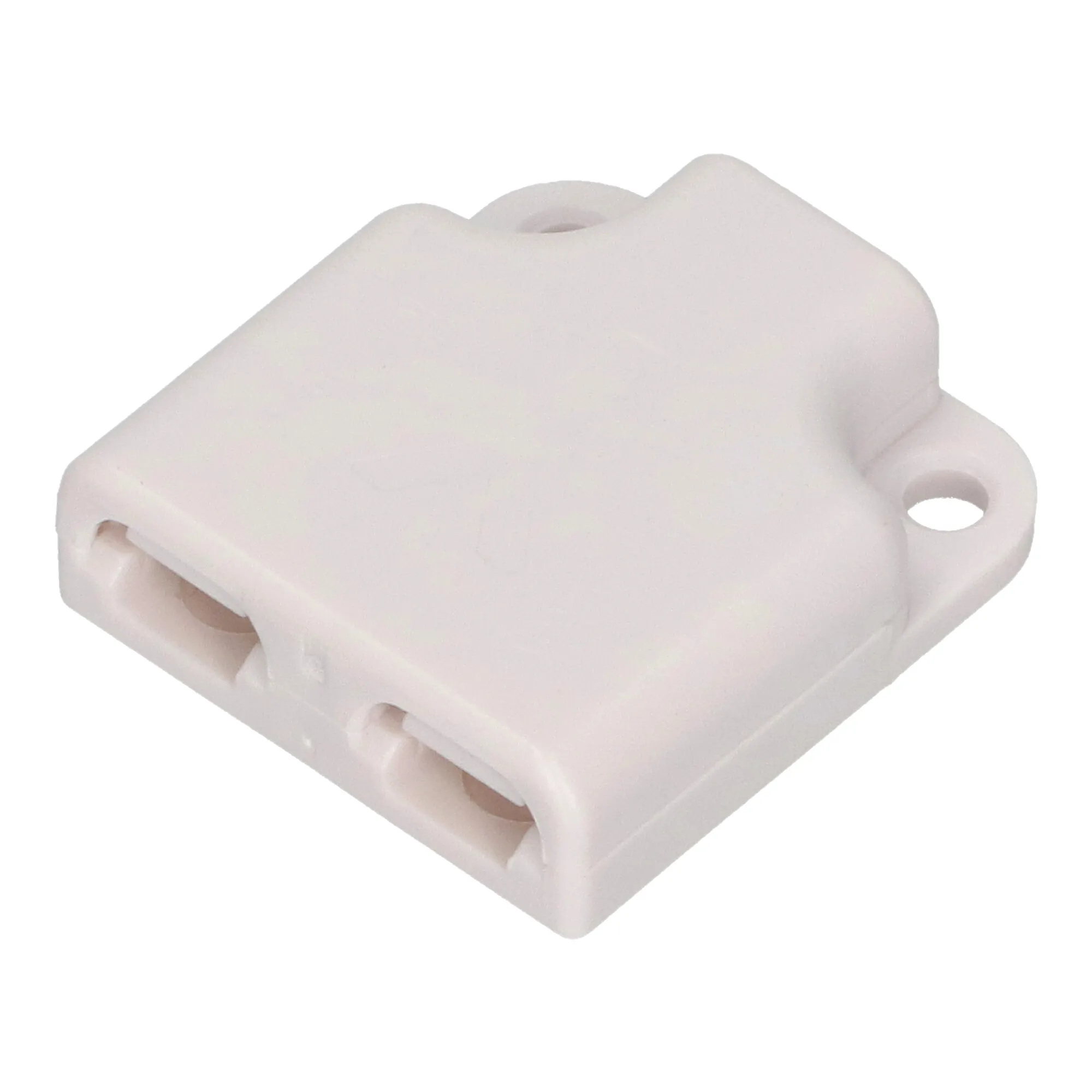

SMART CONNECTION Power Distributor

Voltage: 36V DC
Max. current: 6A
Wire: 0.5mm² (20AWG)
2-pin: L=31mm W=28.5mm H=9.5mm
3-pin: L=31mm W=43mm H=9.5mm
4-pin: L=31mm W=57.5mm H=9.5mm

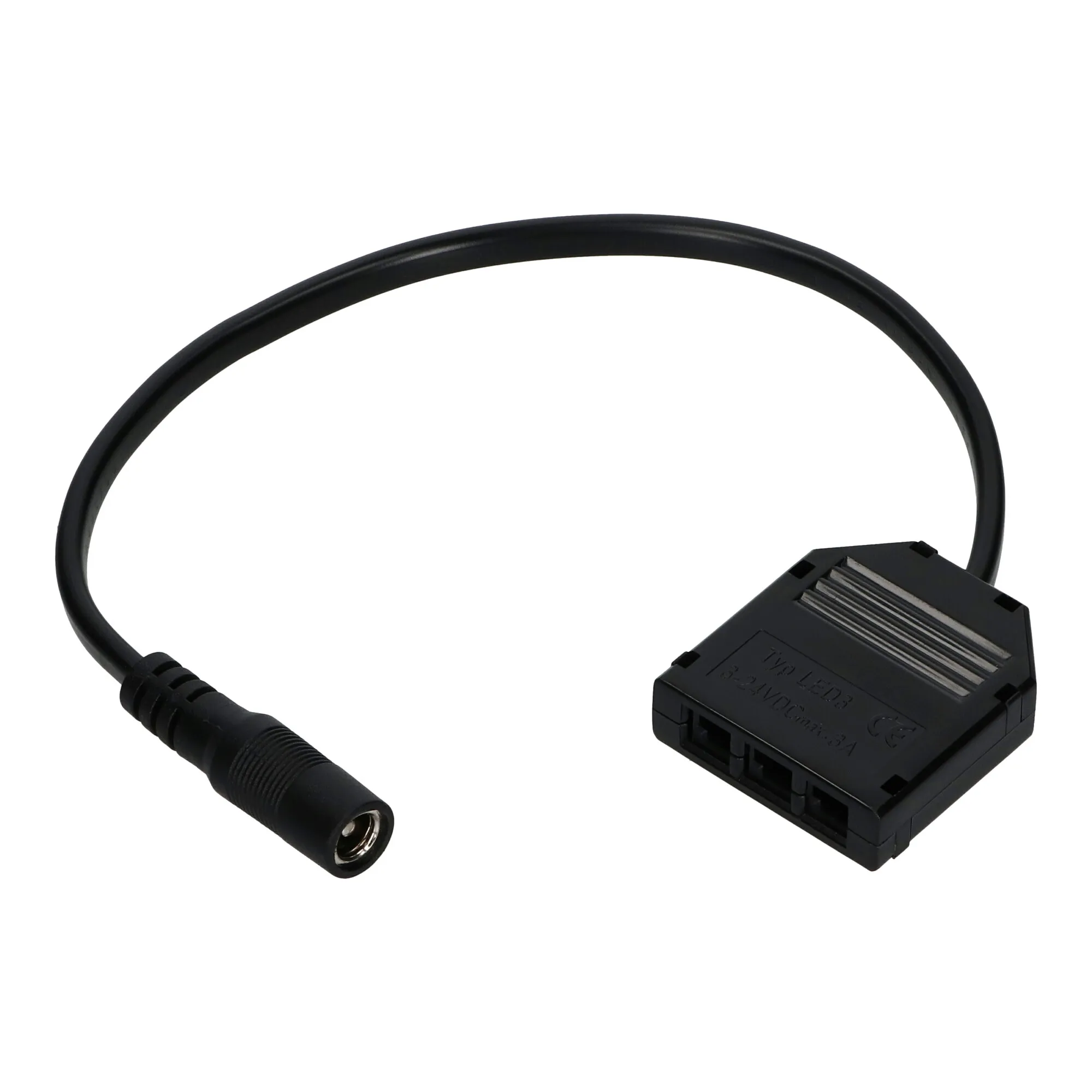

3-Port MiniAMP Distributor

Voltage: 3–24V DC
Max. input current: 3A
Max. output current per channel: 3A
IN (wire): 0.3–0.75mm² (22–18AWG)
OUT (wire): mini AMP plug with wire
3-port: L=38mm W=34.5mm H=10mm
6-port: L=38mm W=58.5mm H=10mm

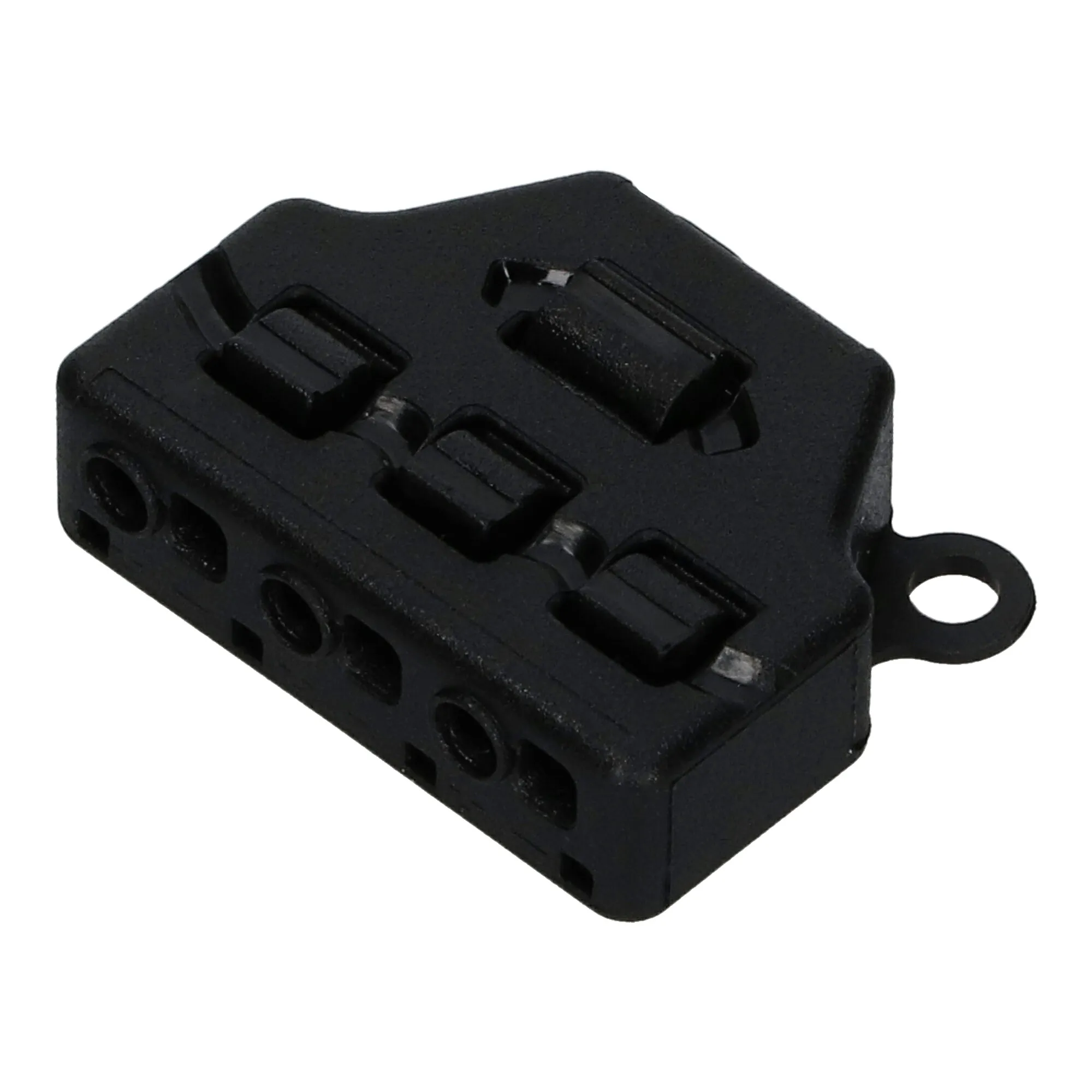

3-Port Distributor

Voltage: 0–42V DC
Max. input current: 9A
Max. output current per channel: 1.5A
IN (wire): 0.3–0.75mm² (22–18AWG)
OUT (wire): 0.3–0.5mm² (22–20AWG)
3-port: L=24mm W=31mm H=9.3mm
6-port: L=24mm W=58mm H=9.3mm

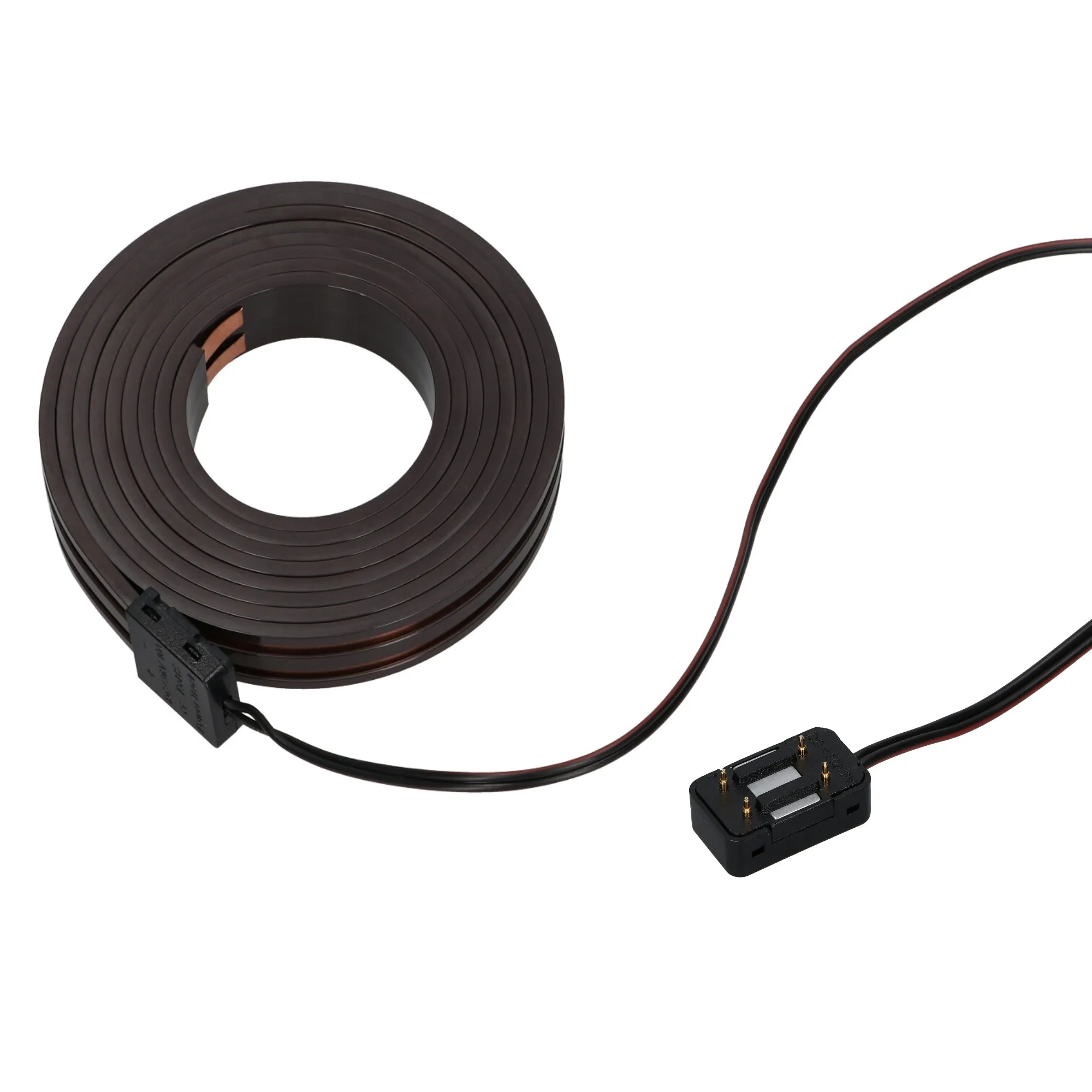

FLEXIBLE MAGNETIC BUSBAR FLEXIBLE MAGNETIC POWER TRACK

Voltage: 12V–36V DC
Power track length: 0.5m to 25m
Current / power track: 12A (max.)
Magnetic connector cable (FMP-L) length: 500mm
Power connector cable (FMP-P) length: 500mm
Power track: W=16.7mm H=3.6mm
Connector (FMP-L): L=27.5mm W=17mm H=8mm
Connector (FMP-P): L=25.5mm W=22mm H=7.5mm

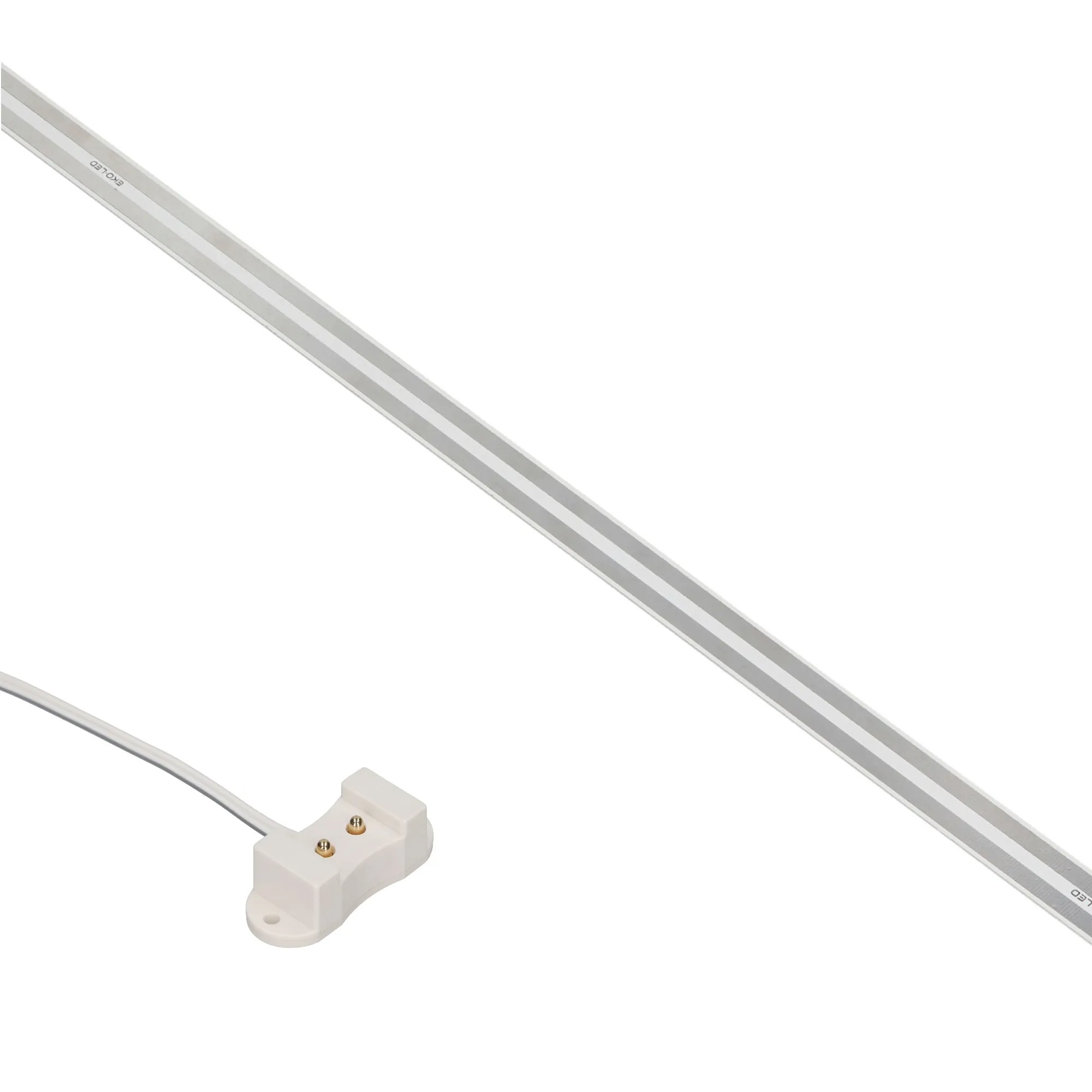

FLY POWER TRACK BUSBAR

ChatGPT powiedział:
Voltage: 12V–24V DC
Power track length: 1480mm
Current / power track: max. 8A
Current / connector: 3A
Connector cable length: 500mm
Power track: L=1480mm W=17mm H=2.1mm
Connector: L=47mm W=18mm H=11mm

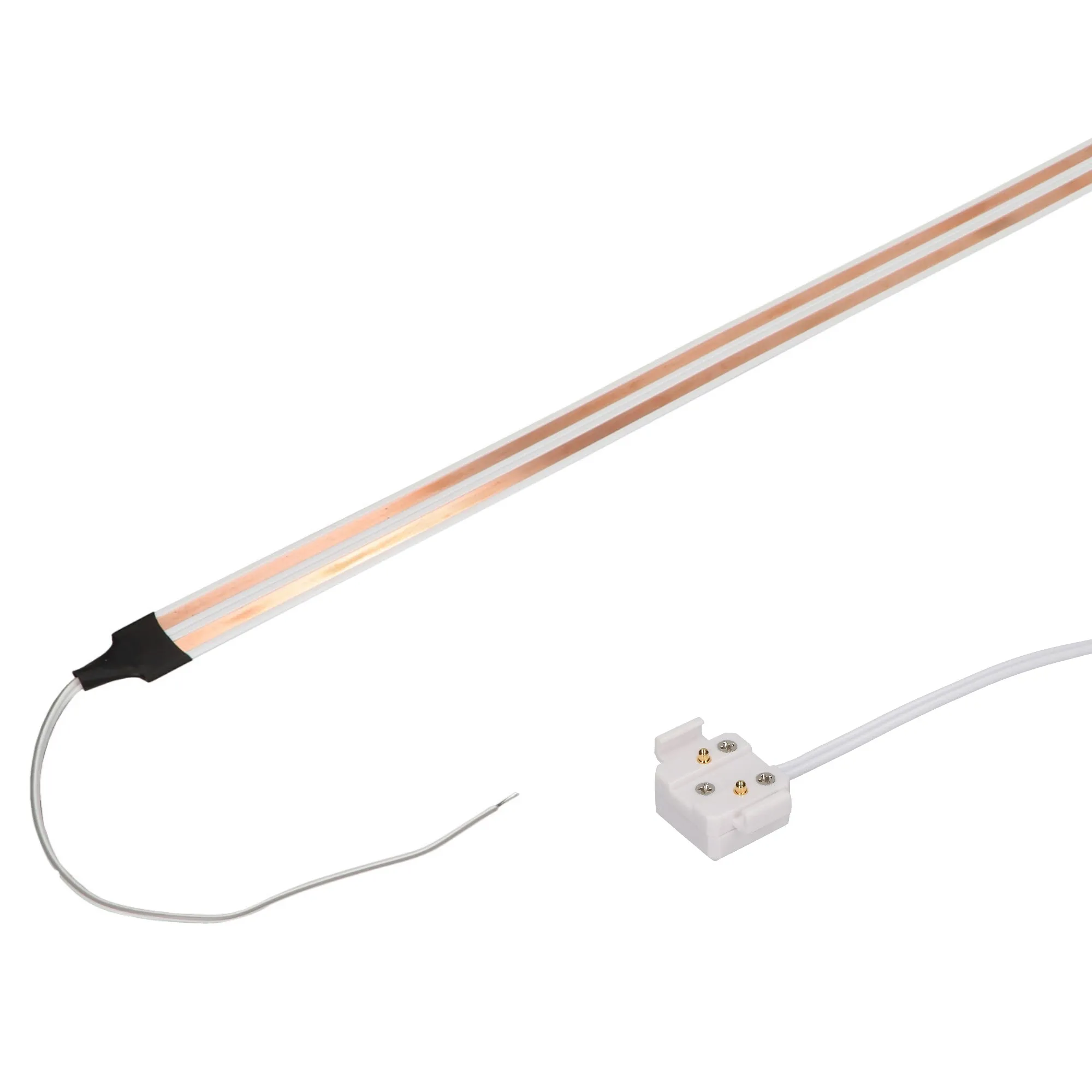

SMART POWER TRACK BUSBAR

Voltage: 12V–24V DC
Power track length: 2000mm
Current / power track: 15A
Current / connector: 3A
Power cable length: 250mm
Connector cable length: 500mm
Power track: L=2000mm W=26.7mm H=2.6mm
Connector: L=28mm W=19mm H=8mm

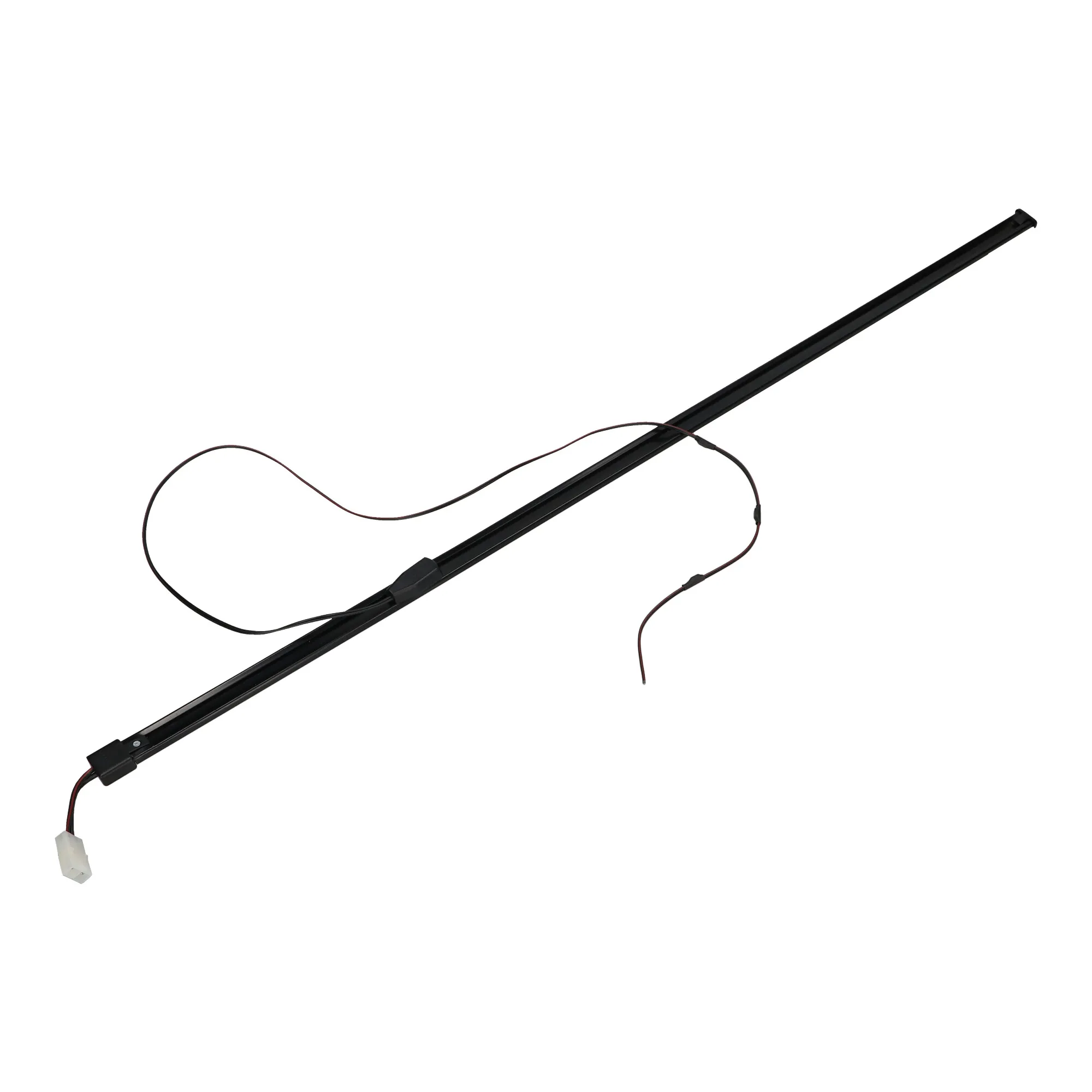

ROTARY POWER TRACK BUSBAR

Voltage: 12V–24V DC
Power track length: 2000mm
Current / power track: 10A
Current / connector: 3A
Connector cable length: 490mm
Power track: L=2000mm W=18.3mm H=6.5mm
Connector: L=36.8mm W=17.9mm H=9.8mm

Cynowanie

przekrój przewodu/wire cross-section
0,22 – 1,5 mm2 (24 – 15 AWG)
max. prąd złącza/max. connection current – 10A
różne kolory przewodów various colors of wires

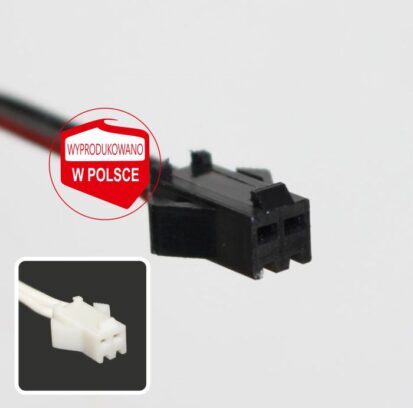

NPPW wtyk

przekrój przewodu/wire cross-section
0,35 ; 0,5 mm2 (22 ; 20 AWG)
max. prąd złącza/max. connection current – 2A
raster styków/contacts pitch – 2,5mm
wtyk i gniazdo/plug and socket
opcje/options 2,3,4,6,8,10 pin .
L = 11,8 mm W = 5,5 mm H = 6,2 mm
biały i czarny/white and black
możliwość zamontowania w panelu
can be mounted in a panel

can be mounted in a panel

Konektor NPPW(wtyk) łączy się z NPPG(gniazdo).gniazdo:

NPPG gniazdo

przekrój przewodu/wire cross-section
0,35 ; 0,5 mm2 (22 ; 20 AWG)
max. prąd złącza/max. connection current – 2A
raster styków/contacts pitch – 2,5mm
gniazdko i wtyk/socket and plug
opcje/options 2,3,4,6,8,10 pin .
L = 18,3 mm W = 7,8 mm H = 8,6 mm
biały i czarny/white and black
możliwość zamontowania w panelu
can be mounted in a panel

MF30 wtyk
MX-43025-0200

przekrój przewodu/wire cross-section
0,35 ; 0,5 mm2 (22 ; 20 AWG)
max. prąd złącza/max. connection current – 5A
raster styków/contacts pitch – 3mm
wtyk i gniazdo/plug and socket
opcje/options 2,3,4,6,8 pin – 0200(2pin), 0300(3pin), 0400(4pin), 0600(6pin), 0800(8pin)
L = 14,1 mm W = 6,3 mm H = 3,9 mm
czarny/black
możliwość zamontowania w panelu
can be mounted in a panel
